RAD-TOLERANT

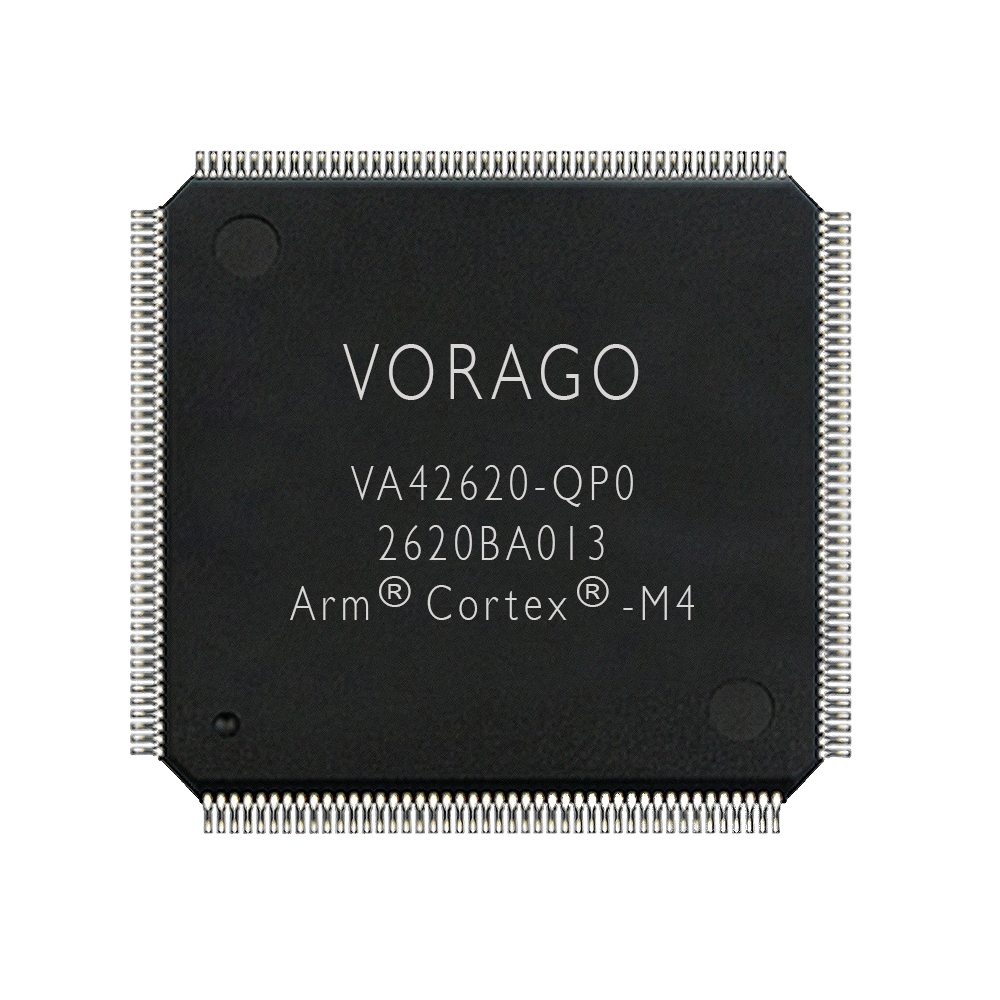

VA42620
Arm Cortex-M4 Microcontroller
Built for the Demands of New Space
The VA4260 sets a new standard as the most integrated RTBD solution available, providing unmatched functional density to meet the demanding requirements of space-based application.
Specifications
The VA42620 mirrors the VA41620 feature set, including its external Serial Peripheral Interface (SPI) Non-volatile memory (NVM) architecture, with radiation and thermal protection optimized for low Earth orbit constellations and high-altitude platforms.
-
• Total Ionizing Dose (TID) > 30 krad(Si) with FRAM
• Single-Event Latch Up (SEL) Immunity: >40 (MeVcm.)mg @ 85°C
• SER with EDAC & Scrub: 1E-12/bit/day
-
• Core: 1.5 V ± 10%
• I/O: 3.3 V ± 10%
-
• 64 KB on-chip Data SRAM
• 256 KB on-chip Program SRAM
• EDAC & Memory Scrubbing
• External Bus Interface
-
• 104 Configurable GPIO Pins
• 3xUART Interfaces
• 3xI2C Interfaces
• 3xSPI Interfaces
• 2xCAN 2.0 B
• Ethernet 10/100 MAC
• Full-Duplex Spacewire Interface
• 4-Ch DMA Controller
• 8-Ch ADC (12-bit, 600 ksps)
• 2-Ch DAC (12-bit)
• Integrated Temperature Sensor
-
• 24 Configurable 32-bit Timers
• Input Capture, Output Compare,
PWM
• Counters and Watchdog Timer
-
• -40°C to +85°C
-
• 196 PBGA (12mm x 12mm)
• 176 PQFP (20mm x 20mm)
-
Low Earth Orbit Constellations
LEO SmallSat On-Board Computers
Satellite Payloads & ADCS
SmallSat Power & Propulsion Units
Aviation & Avionics Systems
Autonomous Defense Vehicles
One Design
One Design, Two Radiation Profiles
RAD-HARDENED
Meet the VA41620, the radiation-hardened twin to the VA42620
Prototype on the VA42620, then deploy the VA41620 in the same footprint for Medium Earth Orbit, Geosynchronous Earth Orbit, and deep space.
Support
Production qualified and shipping now. Supported by the PEB1 development board and software kit.
