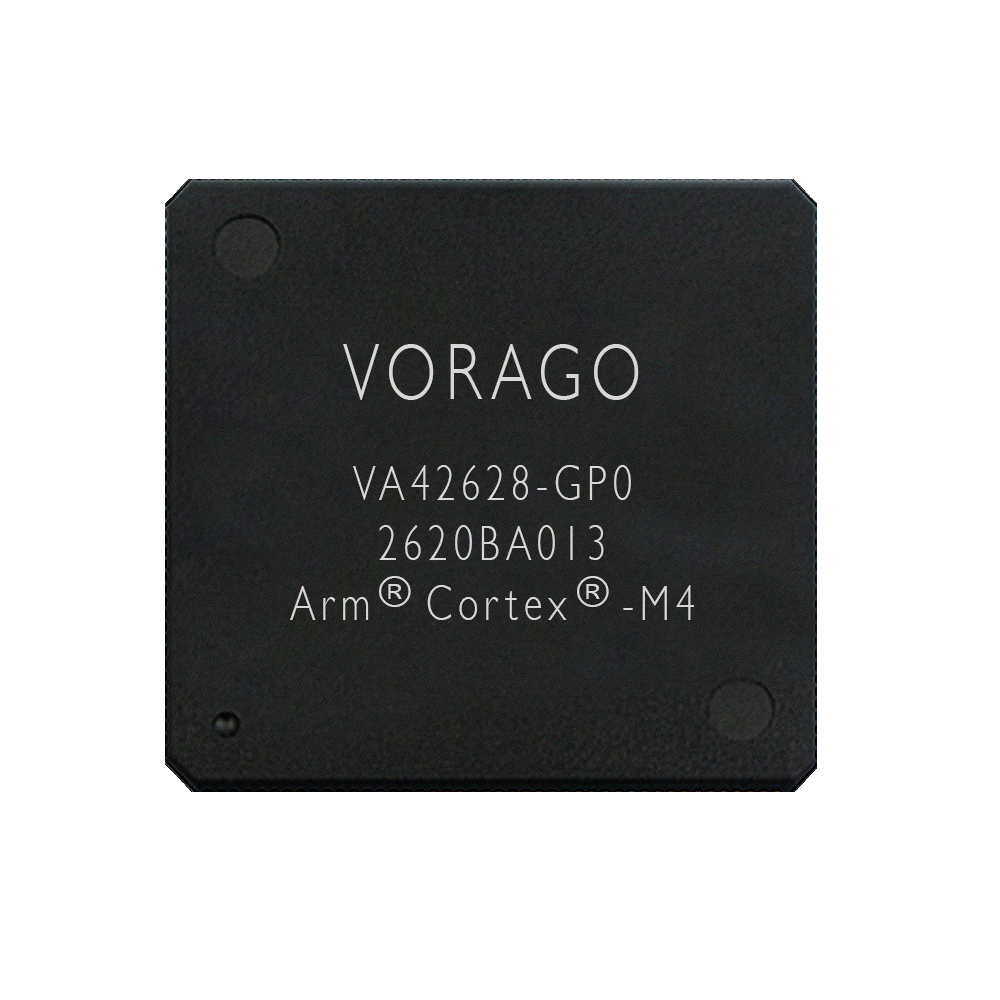

Vorago VA42628-GP0 2620BA013 Arm Cortex-M4 microcontroller chip
Vorago VA42628-GP0 2620BA013 Arm Cortex-M4 microcontroller chip

RAD-TOLERANT

VA42628

Arm Cortex-M4 Microcontroller

Built for the Demands of New Space

As VORAGO’s inaugural Radiation Tolerant By Design (RTBD) microcontroller, the VA42628 provides the full functional features of its rad-hard twin—the VA41628 —yet delivers mission-matched radiation performance at a fraction of the cost.

REQUEST DATASHEET

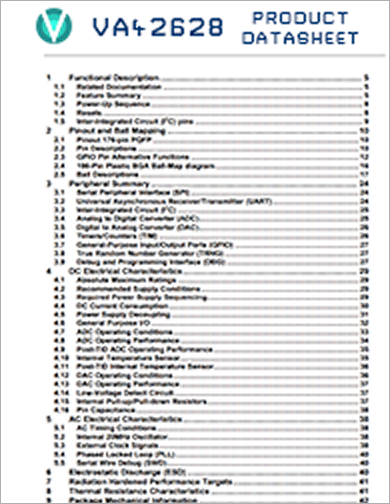

Table of contents page for the VA42628 product datasheet, listing functional description, electrical characteristics, circuit diagrams, and package information.

Specifications

Built on the exact same architecture with integrated non-volatile memory, it is optimized for Low Earth Orbit (LEO), atmospheric, and terrestrial environments, allowing engineering teams to design once and scale seamlessly across orbits.

  • • Total Ionizing Dose (TID) > 30 krad(Si)

    • Single Event Latch-up immunity (SEL) > 40 MeV*cm2/mg @85°C

    • Soft Error Rate (SER) with EDAC & Scrub: <1E-12 errors/bit/day

  • • Core: 1.5 V ± 10%

    • I/O: 3.3 V ± 10%

  • • 256KB Program and 64KB Data

    SRAM each with EDAC & Scrub Engine

    • 8/16 External parallel NVM / SRAM

  • • 75 Configurable GPIO pins

    • 3 UART interfaces

    • 3 I2C interfaces

    • 3 SPI interface

    • DMA controller

    •

  • • 24 configurable 32-bit counters/timers

    • Input capture, Output compares

    • PWMs, Pulse Counters, Watchdog

    timer

  • -40°C to 85°C

  • • 128 CQFP (14mm x 14mm)

    • 196 BGA (12mm x 12mm)

    • Low Earth Orbit Satellites

    • Avionics & Tactical Defense

    • Cost-Optimized Pure-Digital Subsystems

    • Digital Thruster & Valve Management

    • Subsystem Health & Power Monitoring

    • Command Handling & Digital Interfacing

    • Arm Cortex-M0 Legacy Upgrade Architecture

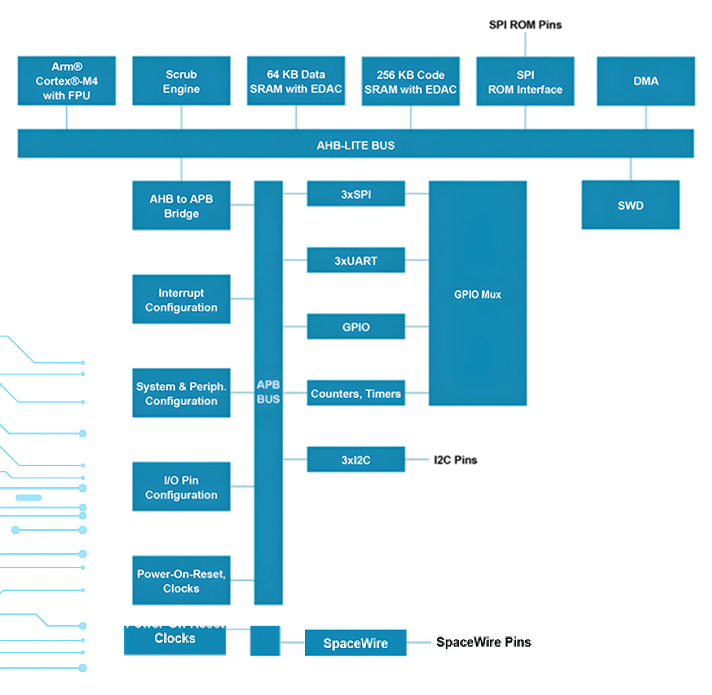

Block diagram of an Arm Cortex-M4 microcontroller with AHB-Lite and APB buses, memory, SPI, UART, GPIO, timers, I2C, DMA, SWD, SpaceWire, and configuration peripherals.

One Design

One Design, Two Radiation Profiles

Dark blue printed circuit board pattern with electronic traces and a central microchip

RAD-HARDENED

Top view of a square woven bamboo placemat with beige, brown, and gray stripes and a centered decorative label.
Top view of a square woven bamboo placemat with beige, brown, and gray stripes and a centered decorative label.

Meet the VA41628, the radiation-hardened twin to the radiation-tolerant VA42628

Prototype on the VA42628, then deploy the VA41628 in the same footprint for medium Earth orbit, geosynchronous orbit, and deep space.

LEARN MORE

Support

Production qualified and shipping now. Supported by the PEB1 development board and software kit.

Green electronic circuit boards with microchips, connectors, and soldered components
DEVELOPMENT KIT

Ready to Build Your Next Mission?

Get a quote
