RAD-TOLERANT
VA54230
Dual Core Arm® Cortex®-M55 Microcontroller
Cost-Optimized Mixed Signal Compute Engine
The rad-tol VA54230 is the twin chip to the rad-hard VA53230 —engineered to be functionally identical in every way except with rightsized radiation performance for Low Earth Orbit (LEO) at a fraction of the cost. The VA54230 uses our unique new Radiation Tolerance by Design (RTBD) approach for mission-matched reliability and breakthrough price/performance, at a fraction of the cost.
Specifications
The VA54230 offers Low Earth Orbit (LEO)-optimized Radiation Tolerance Built by Design (RTBD) at significantly lower cost than it’s rad-hard counterpart. Designing once eliminates NRE. Unlike up-screened COTS, RTBD handles mitigation natively—eliminating EDAC "software tax" and keeping your MCU focused on mission control.
-
TID > 30 krad(Si)
SER <1E-12 errors/bit-day;SEL > 40 MeV*cm2/mg (at T=85°C)
-
Operating Voltage
• Core: 1.2 V ± 10%
• I/O: 3.3 V ± 10%
-

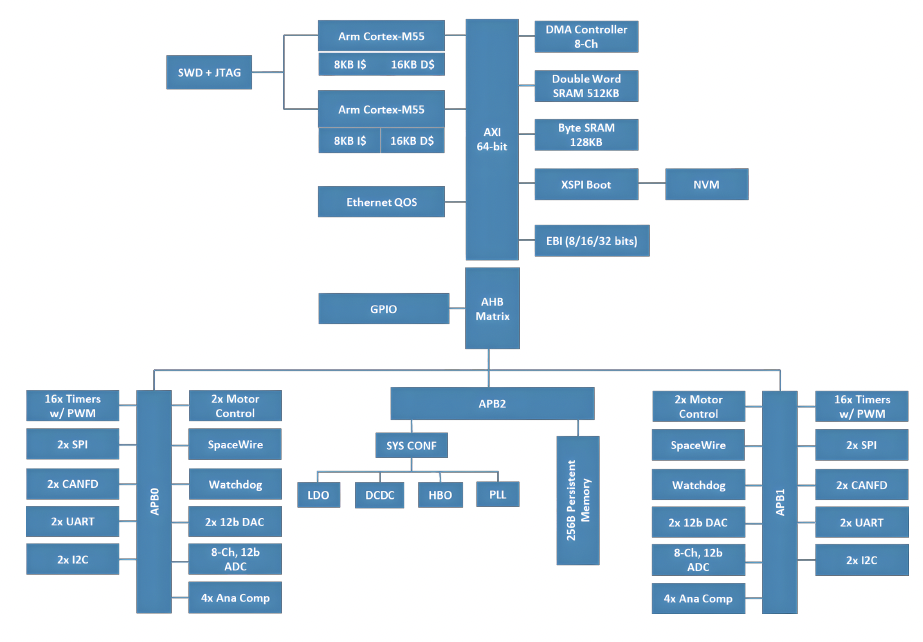

• 512KB double word and 128KB byte SRAM each with EDAC and Scrub Engine
• 256KB in-package NVM for boot using SPI
• 256B Persistent Memory
• 8/16/32-bit External Bus Interface (EBI)
-
• 2xADC-12bit, 4xDAC-12bit (2 external, 2 internal)
• 8x Analog comparators
• 2x Motor Control Tool-Box (timers, PWM,
ADC HW triggers)
-
32x Timers/Counters with PWM
2x WatchDog Timers
139 GPIO -
• -40°C to +85°C
-

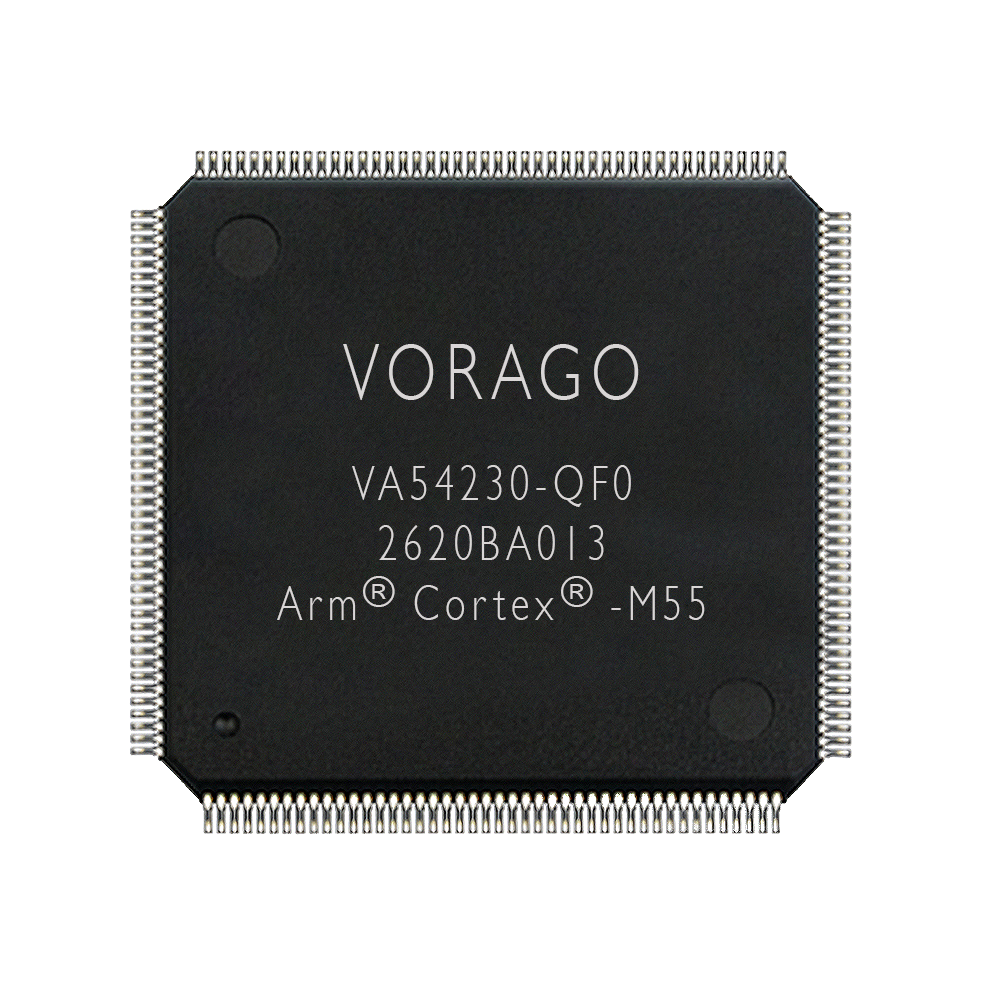

• 256-pin Ceramic QFP
• 256-pin Plastic QFP
• 313 Plastic BGA
-
Intelligent CubeSat & SmallSat On-Board Computers (OBCs)
NewSpace Multi-Axis Propulsion Orchestration
Advanced Star Tracker & ADCS Sensor Fusion
LEO Satellite Payload Interface & Data Routing
Autonomous Aviation Flight Control Computers
Tactical Ground Vehicle Secure Subsystems
One Design
One Design, Two Radiation Profiles
RAD-HARDENED

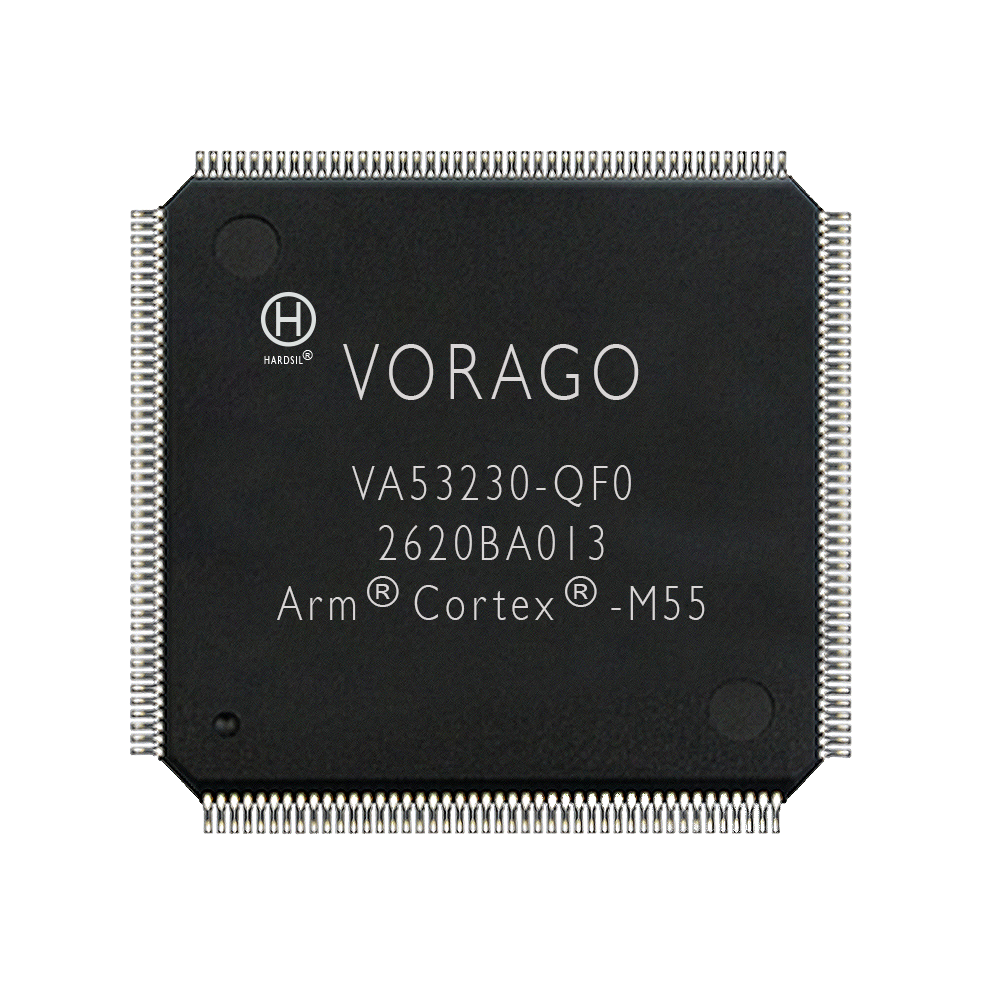

Meet the VA53230, the radiation-hardened twin to the VA54230
Prototype on the VA53230, then deploy the VA54230 in the same footprint for medium Earth orbit, geosynchronous orbit, and deep space.
