PEB4

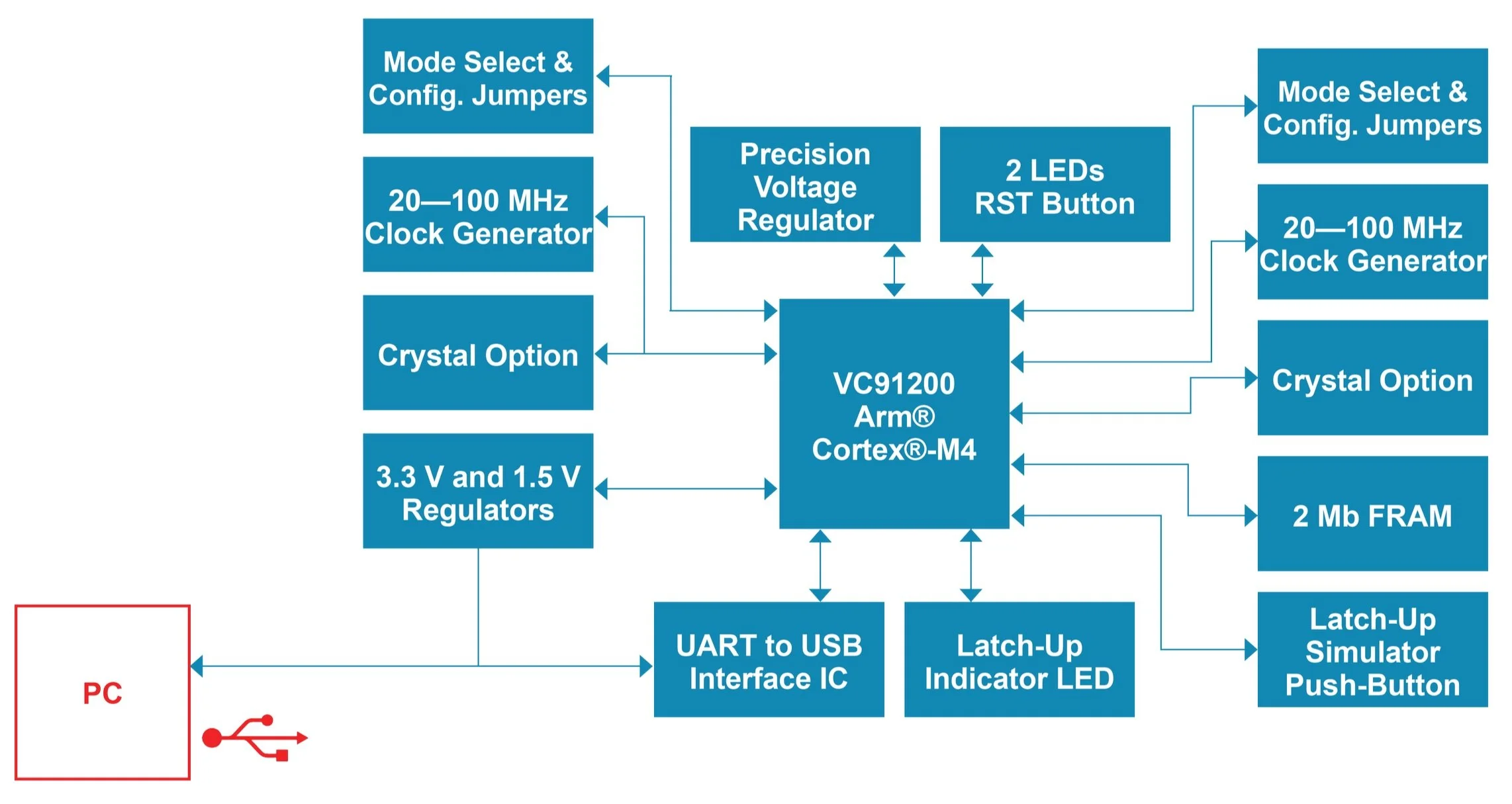

MCU Single Board Computer (SBC*)

PCB dimensions – 6.57” x 4.8”
3.3V and 1.5V regulators
On-board power distribution and monitoring
On-board clock generation (20MHz)
Power supplied (5V) through barrel connector
Three sample load circuits
• 555 Timer load circuit
• PLL load circuit
• Resistive load circuit
Fly wires for external connections
Five LEDs: 3.3v power, two indicating correct operation, 555 timer active, latch-up detect (red)
UART to USB IC
Shunt resistors and FET switches
SCR with switch to simulate latch-up event

Part Number Description

PEB4-VC91200 Supports VC91200 rad-hard latch-up monitor IC
