VA5 FAMILY
Accelerated Performance
For Next-Gen Space
Dual-Core Capability for Critical Payloads
The VA5 microcontroller family pairs two 32-bit Arm® Cortex®-M55 cores with mixed-signal peripherals, motor control, and a full communications suite, delivering the processing headroom that single-core designs can't. Each device is offered in radiation-hardened and radiation-tolerant versions, so the choice comes down to the environment, not the design.
Mission-Matched Dual Core Power
With two 32-bit Arm® Cortex®-M55 cores running up to 200 MHz, both the VA5 rad-hardened and rad-tolerant MCUs deliver high-throughput, low-latency processing for complex real-time control. Compared with VORAGO’s single-core VA4 workhorse, it offers 2x the speed and 5x the capability for advanced aerospace, defense, and autonomous systems. Advanced fault tolerance, protected program and data memory, communications, and analog-control interfaces provide a dependable platform for onboard payload control, flight systems, and other mission-critical applications.
Rightsized Radiation Performance From Leo to Geo
More Capability for Advanced Control
Whether you’re flying in LEO or GEO, rad-hard and rad-tol VA5 MCUs are designed for systems that need greater real-time processing, more complex control, and dependable operation in extreme environments.
Target Missions and Markets
Advanced ADCS and robotics
Propulsion management
Precision payloads
Secure space networking
Software-defined radios (SDR)
Autonomous aviation and flight control

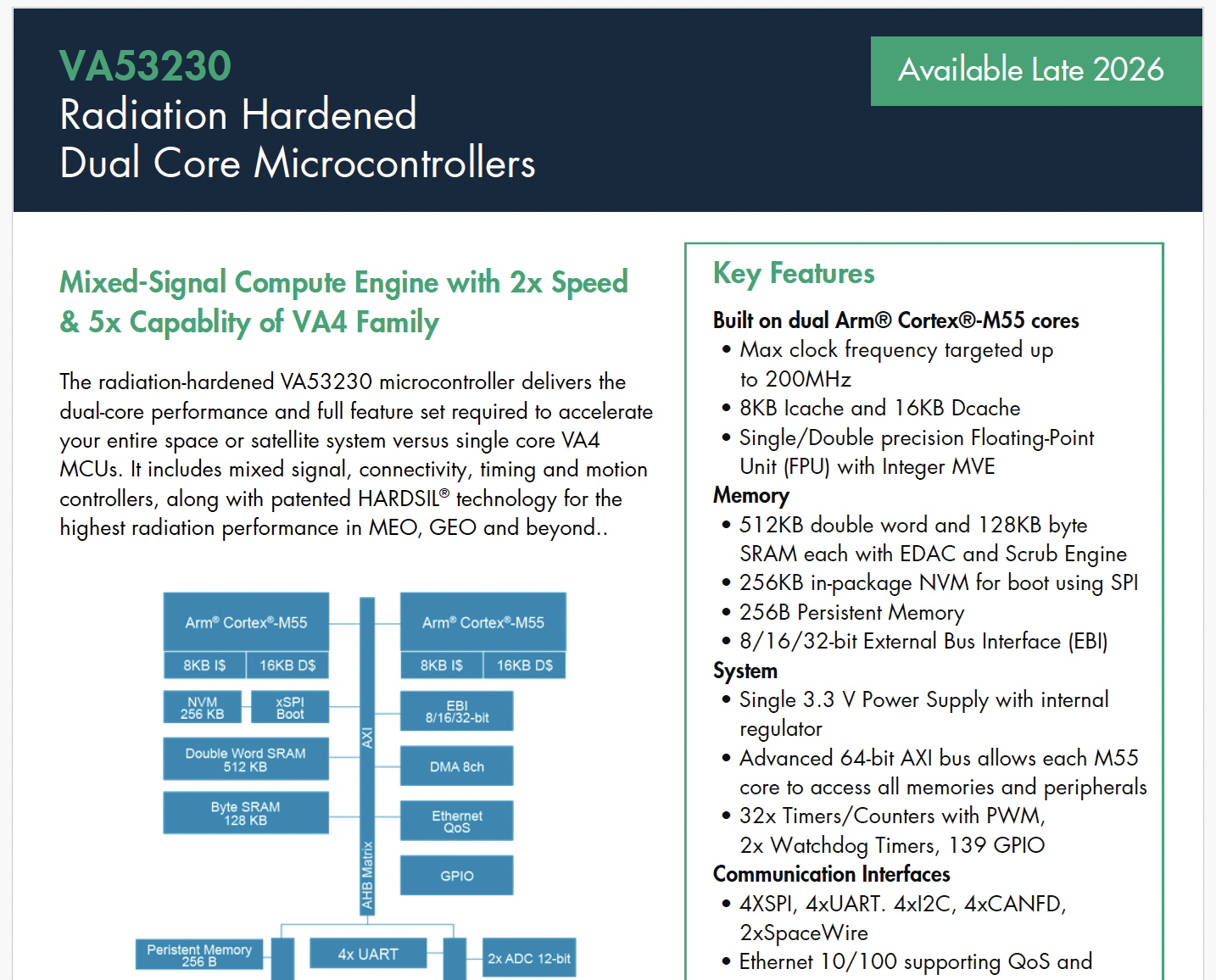

Get the VA5 Product Brief
Complete specifications, radiation performance data, and package options for the VA5 family.
RAD-TOLERANT
RAD-HARDENED
TID 200 krad(Si)
-55°C to +125°C
TID >30 krad(Si)
-40°C to +85°C
VA54230
VA53230
Dual-core Arm Cortex-M55 processing with mixed-signal peripherals, motor control toolboxes, and a complete communications suite, built for demanding real-time control and motion systems. Available in radiation-hardened and radiation-tolerant versions on a shared pin-out and software base, so the choice is radiation performance, not redesign.
RAD-TOLERANT
RAD-HARDENED
TID 200 krad(Si)
-55°C to +125°C
TID >30 krad(Si)
-40°C to +85°C
VA54239
VA53239
A communications and timing configuration that keeps the dual-core performance while narrowing the peripheral set to digital connectivity. Suited to satellite payload routing, secure networking, and avionics data handling, in radiation-hardened and radiation-tolerant versions.
